Crane Barges

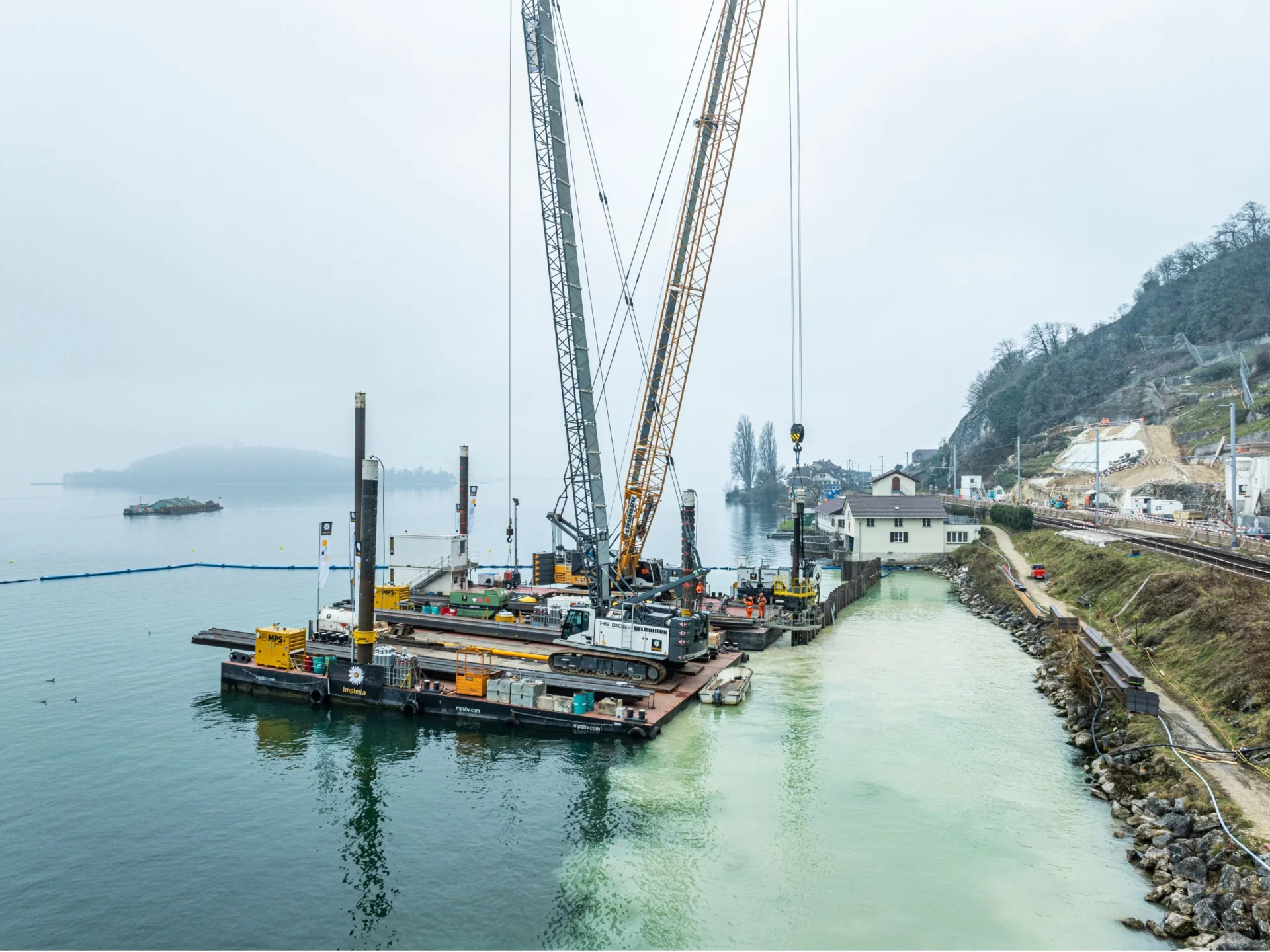

A MPS modular pontoon in combination with stabilizing spud legs and mooring systems is the perfect basis for your crane barge and offers you a range of possibilities and benefits.

To ensure optimum pontoon size for safe working we can submit you with a basic calculation of  trim, list and stability. All we need is some basic information of intended equipment on board and project working procedure to enable us to submit you our basic advice.

Our CSC plated pontoons are easily transportable by road, water and rail to any location around the world. Almost any size and shape of pontoon can be constructed using our standard modules to fit our clients’ project demands.

Joint Forces, optimal marine equipment.

More information? Get in touch!
    • Crane Barge 3014

    Crane Barge 3017

    Length30.48 m. (100 ft)
    Width17.07 m. (56 ft)
    Side depth1.98 m. (6.5 ft)
    MachineryLiebherr HS855 HD - 130 ton
    Deck area520 m2
    Approx. capacity600 ton at 0.4m freeboard
    Spud legs3 - Ø762 x 25mm
    • Crane Barge 3014

    Crane Barge 3017

    Length30.48 m. (100 ft)
    Width17.07 m. (56 ft)
    Side depth1.98 m. (6.5 ft)
    MachinerySennebogen 6130 HD - 130 ton
    Deck area520 m2
    Approx. Capacity600 ton ton at 0.4m freeboard
    Spud legs3 - Ø762 x 25mm
    • Crane Barge 3020

    Crane Barge 3617

    Length36.58 m. (120 ft)
    Width17.07 m. (56 ft)
    Side depth2.44 m. (8 ft)
    MachineryKobelco 2500 - 210 ton
    Deck area620 m2
    Approx. Capacity950 ton ton at 0.4m freeboard
    Spud legs2 - Ø762 x 25mm
    • Crane Barge 3620

    Crane Barge 3620

    Length36.58 m. (120 ft)
    Width19.51 m. (64 ft)
    Side depth2.44 m. (8 ft)
    MachineryManitowoc 2250 - 265 ton
    Deck area710 m2
    Approx. Capacity1050 ton ton at 0.4m freeboard
    Spud legs4 - Ø762 x 25mm
    • Crane pontoon 3620

    Crane Barge 3620

    Length36.58 m. (120 ft)
    Width19.51 m. (64 ft)
    Side depth2.44 m. (8 ft)
    MachineryLiebherr LR1280 - 260 ton
    Deck area710 m2
    Approx. Capacity1050 ton ton at 0.4m freeboard
    Spud legs4 - Ø762 x 25mm
    • Crane Barge 5522

    Crane Barge 5522

    Length54.86 m. (180 ft)
    Width21.95 m. (72 ft)
    Side depth2.44 m. (8 ft)
    Machinery2 x Liebherr HS895 HD - 175 ton
    Deck area1200 m2
    Approx. Capacity1800 ton ton at 0.4m freeboard
    Spud legs2 - Ø762 x 25mm
